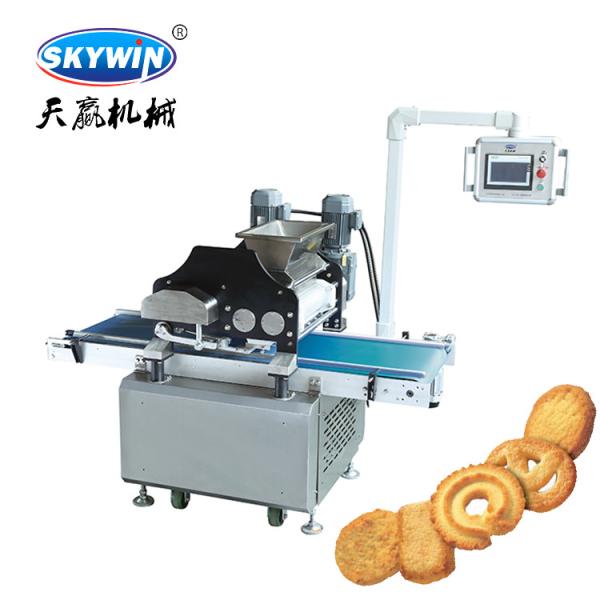

Skywin Small Wire-Cut and Depositor Cookie Machine
The PLC Tray Type Cookie Machine can make deposite cookie and wire-cut cookie,if you want to produce other shape biscuits,it can be finished by changing mould.
1. This PLC cookies making machine can make two types cookies: one is wire cut cookie, another one is depositor cookie. And the biscuit shapes can be customized.
2. After cookies forming, the cookies will be baked by rotary oven. Compact structure / Multi-function / Easy operation / Popular with the majority of users.
Model-400mm, conveyor belt width 400mm
Tray Type PLC control Cookies machine
- With Wire-cut and Depositor two functions.
- Tray size 400x600mm (can be customized)
- Servo motor control Delta Brand, with low noise, high efficiency, long life and other advantages;
- Conveyor PU belt (belt with guide), a thickness of 1.4mm;
- SIEMENS inverter and PLC touch screen control system, with high transmission efficiency, low noise, smooth operation, etc.;
- Servo motor selection famous brand, Conveyor drive roller adopt Nylon rubber material, Pu with a non-toxic oil-resistant material;
- Conveyor plate 304# stainless steel
- Cover by 1.2mm thickness 304# stainless steel ;
- Electrical control: touch-screen control,
- electrical control components using Delta Brand;
- Working width: 400mm
- Speed: 0~45time/min
- Capacity: 80 ~ 100Kg / H
- Dimension: 1450*1350*1050mm
- Voltage: 380V/50Hz
- Power: 2.3kw
- Weight: 390kgs
Capacity:100-150kg/h
Delivery:25-30days
Features:
.Error of each product within 1g, and we will have the improvements every year.
.Easy to operate the machine, you can handle the machine after training.
.All the electric components adopt the one stop solution , such as PLC, invertor.
.It is designed for factory.
.Material adopt SUS304, food grade type.
.Easy to disassembly the parts, and cleaning the machine need a little time.
New design PLC cookie machine
Machine component:
1.Servo motor: Control Delta Brand
2.Reducer: RV reducer Bailuo Brand
3.Conveyor drive roller: Nylon rubber material
4.Electrical control: PLC Touch-screen control
5.Conveyor PU belt: non-toxic oil-resistant material
6.Conveyor plate Material:304# stainless steel
Deposite Cookie:
Wire-cut Cookie:
Cookie shapes:
There are many shapes for your choose, you can finish different shapes by changing different models.
If you have another good design, we also can meet you demand.
♥Looking Forward To Your Specific Inquires.♥

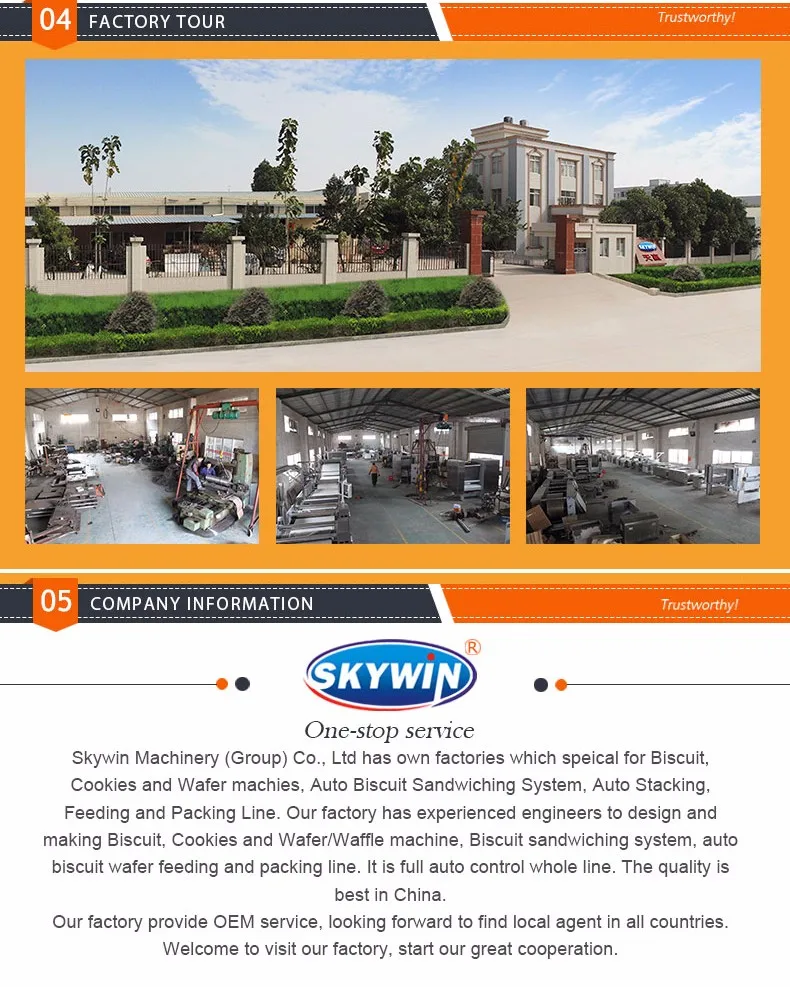

Company profile:
Skywin Foodstuff Machinery Co.,Ltd
Skywin Foodstuff Machinery Co.,Ltd is specialized in food processing machines and packing system in China Guangdong. Replying on superior quality and excellent service, our products are selling in North America, South America, Europe, Southeast Asia, the middle East and Africa. We have many year’s experience in various food processing machines in China and have provided excellent after-sales services/engineering services in the past years. We hope to establish long term business relationships with you. We sincerely invite foreign customers to visit our company for business cooperation.
