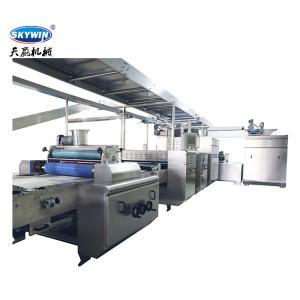

Width 800mm Bakery Biscuit Production Plant / Industrial Biscuit Machine 600kg/H

Name: Width 800mm Bakery Biscuit Production Plant Industrial Biscuit Machine 600kgH
Brand: SkywinBake
Price: 200 USD

Wholesale Width 800mm Bakery Biscuit Production Plant / Industrial Biscuit Machine 600kg/H from china suppliers

Brand Name : SkywinBake

Place of Origin : Guangdong, China

Certification : CE ISO SGS

Supply Ability : 100 Set/Sets per Month Bakery Biscuit Making Machine

Packaging Details : WOODEN CASE of biscuit production line for Export standard suitable for Seaworthy

MOQ : >=1 Sets

Price : $200,000.00

Condition : New, New

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2021

Warranty of core components : 1 Year

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, The Whole Line

Voltage : 220-380V/50HZ/60HZ

Power : 124kw

Dimension(L*W*H) : 19800*5233*523mm

Weight : 1300kg

Warranty : 1 Year

After-sales Service Provided : Free spare parts

Machinery Function : Making biscuit

Output product name : biscuit production line

Key Selling Points : Multifunctional

Bearing : NSK Brand

Conveyor Belt : Cotton and pu

Automatic : PLC Controlled

Gearbox : Guomao Brand

Material : 1.5-2mm Stainless Steel

Color : Silver

Air Cylinder : AIRTA

Transducer : Schneider Brand

Motor : Guomao Brand

Port : SHUNDE PORT

Contact Now

China Bakery Machine Biscuit Maker Full Automatic Industrial Biscuit Production Line

A whole line consist of:

1. Horizontal dough mixer, 150-500 kg/batch
2. Automatic dough tipper and feeding system
3. Rotary moulder for Soft Biscuit Forming
4. Tunnel oven, electric/indirect gas fried or hybrid gas oven for option,
length is depend on capacity. Capacity Option:100-1500KG/HR
5. Turning machine 180degree or 90degree design as per the plant length
6. Cooling conveyor
7. Biscuit stacking machine (start wheel stacker or penny stacker)
8 .Packing table
9. Biscuit Sandwich Machine Connect to Packing Machine (For Making Sandwich Biscuit)

Product Details

Work Width(mm) & Length of Oven(30-60m)	Capacity(kg)
400	100-200
600	200-400
800	400-600
1000	600-800
1200	800-1000
1500	1000-1200

Width 800mm Bakery Biscuit Production Plant / Industrial Biscuit Machine 600kg/H

Machine Component:

1. Chinese famous brand motor & gearbox
2. SKF bearing
3. SMC Penumatic cylinder for belt tension and deflecting adjustment
4. PU and Cotton belt
5. 304 Stainless steel cover, thickness 1.5-2.0mm
6. SIEMENS transducer electric and PLC touch screen control.
7. Guarantee for 1 year along with recommended spare parts for 1 year.

A. Horizontal Dough mixer(For Both Hard Dough and Soft dough)

Horizontal dough mixer for soft biscuit and hard biscuit dough
1) Speed from 25r/min to Max. Speed60r/min, frequency speed
2) SEW/Chinese Brand motor & gearbox
3) Full stainless steel 304#
4) with one Dough Tub capacity 150-500kgs
5) Tub thickness 5mm and 8mm
6) Newest design touch screen Siemens PLC control system

B. Dough Cutting and Feeding System

C. Soft Biscuit Forming Machine(Two Mould For Free)

This machine is for making the Soft Biscuits,
you can changing the biscuit shapes by changing the biscuit moulds.

Horizontal Rotary Moulder for Soft Biscuit

1) Mould working width 400-1500mm
2) Adjusted by PLC
3) Speed control by frequency inverter
4) Siemens inverter and PLC touch screen
5) Main driver SEW/Chinese Brand motor and gearbox

6) Main bearing NSK

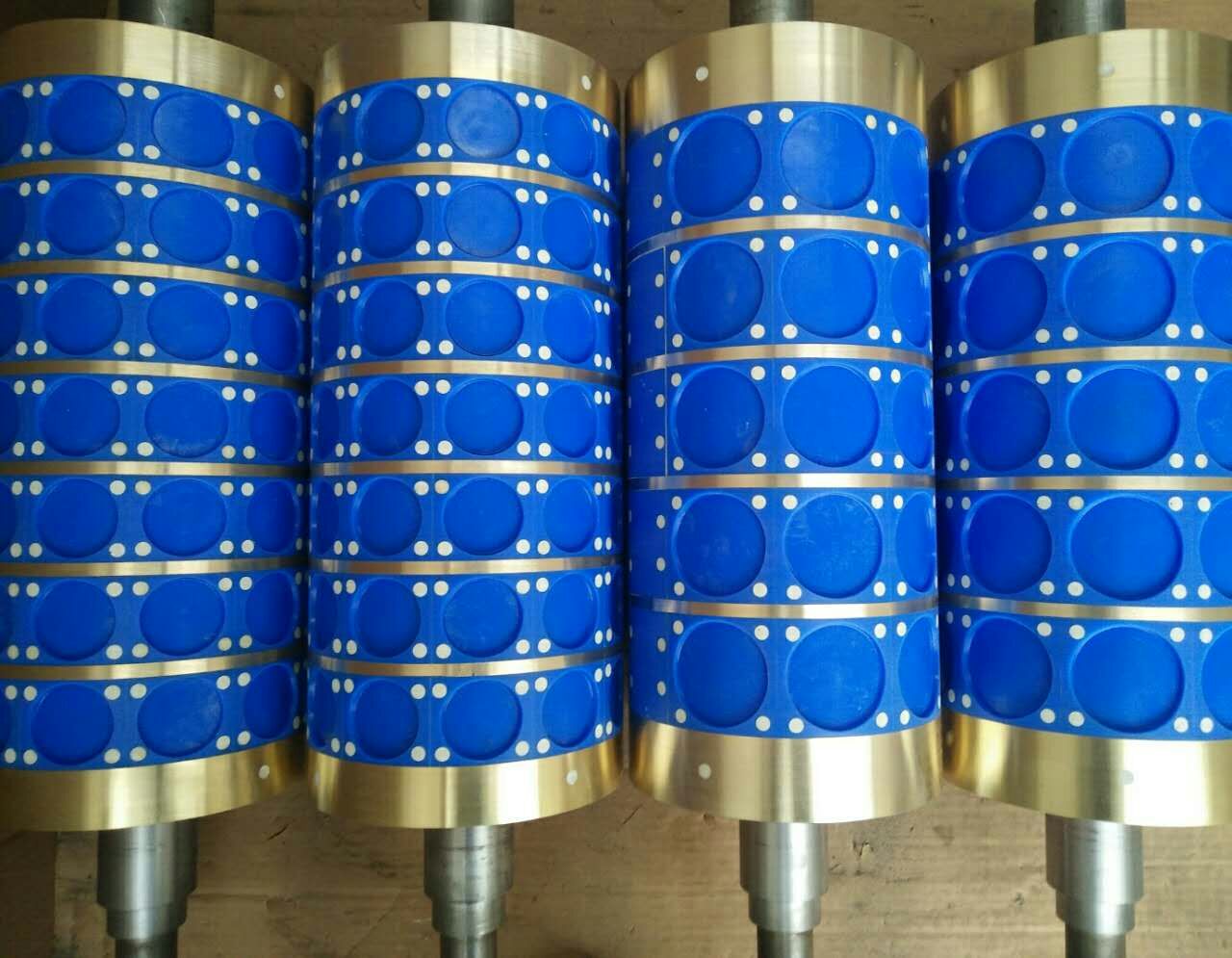

Soft Biscuit Mould

D. Biscuit Gas/Electric Baking Tunnel Oven

Hybrids Direct Gas and Indirect Gas circulation Tunnel oven

1). Temperature 5 zones
2). 9m pre-heating mesh belt
3). 65m divided into 5 temperature zone
4). Siemens inverter and PLC touch screen
5). Air blower for hot wind circulation system
6). Pneumatic automatic tracking and adjust

belt and tension
7). Oven cover by 304 Stainless steel
8). Heat resistant material: rock wool

E. Auto Packing System.

180 Degree Turning Machine

Biscuit Stacker

F. Biscuit Sandwich & Packing

Two lane creaming machine connect flow packing machine

1. Two lane output sandwich biscuit about 1200pcs/min
2. Independent frequency inverter control and adjust
3. Siemens inverter and PLC touch screen and Schneider electric
4. Delta servo motor and gearbox
5. All pushers on creaming machine made by stainless steel
6. Safety protection cover
7. Waste collection cabinet
8. Flow packing machine model SK-320, Bag size: Length 80-500mm, Width 35-145mm, Height 5-55mm
9. Packing speed: 35-300 bags/min
10. Packing type: 1x1,1x2,... 1x6 - 2x1, 2x2,...2x6

More Details Please contact with us .

Company Introduction

* SKYWIN Food Machinery Group Company was Founded in 2010,which is lotated in Beijiao,

Shunde, Foshan, Guangdong, CHINA
* Skywin Group Had 30 Years Experience Salers and Engineers in Biscuit Bakry Field.
* Skywin Group has two factories, One is for Large Biscuit & Cookies & Wafer Production Line, One

is for Automatic Biscuit Sandwiching Machine with Packing System.
* We have more than 60 professional staffs to match delivery time, base on “International Quality,

Competitive Price”.
