100kg-1800kg/Hr Chocolate Filled Bear Biscuit Processing Line

Product Categories

Skywin Foodstuff Machinery Co., Ltd.

Contact Now

100kg-1800kg/Hr Chocolate Filled Bear Biscuit Processing Line

Name: 100kg1800kgHr Chocolate Filled Bear Biscuit Processing Line
Brand: Skywinbake
Price: 150 USD

Wholesale 100kg-1800kg/Hr Chocolate Filled Bear Biscuit Processing Line from china suppliers

Brand Name : Skywinbake

Place of Origin : Guangdong, China

Certification : CE , ISO,

Supply Ability : 10 Set/Sets per Month Biscuit Making Machine

Packaging Details : The machine shall be packaged by wooden cases,which are suitable for long distance transportation and seaworthy.

MOQ : 1 Set/Sets

Price : $150,000.00 - $1,000,000.00 / Set

Condition : New

Applicable Industries : Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops, Biscuit Making Machine

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Showroom Location : None

Video outgoing-inspection : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : PLC, Engine, Gear

Voltage : 380V/50-60Hz

Power : 120KW

Dimension(L*W*H) : 12900*1350*800mm

Weight : 1450KGS

Warranty : 1 Year

After-sales Service Provided : Field installation, commissioning and training

Machinery Function : biscuit making machine

Output product name : Biscuit

Key Selling Points : Multifunctional

Capacity : 100-1500kg/h

Materials : Stainless steel 304#

Control : SIEMENS PLC

Transducer : SIEMENS

Motor : Chinese famous brand GUOTAI

Conveyor belt : Cotton and PU

Automatic : Touch Screen Control

Gearbox : GUOTAI Brand

Bearing : NSK Brand

Power Source : Electric Power

Port : Shunde Port

Contact Now

Product Description

Skywin Chocolate Filled Bear Biscuit Production Line Price

This machine is available for all kinds of biscuits( Hard and Soft biscuit, Soda Cracker, Cookies, also Stick biscuit, Print biscuit and Chocolate filling biscuit), different shape biscuit just need to change the mould ,we also can design mould for you as per your details.

1. Skywin Model 400mm or 600mm or 1000mm or 1200mm or 1500mm, capacity from 100kg-1800kg/hr.
2. It is widely available for making all kinds of biscuits( Hard and Soft biscuit, Soda Cracker, Cookies, also Stick biscuit, Potato chips, hello panda biscuit, Print biscuit and Chocolate filling biscuit)
3. Different shape biscuit just need to change the mould, we also can design mould for you according to your requireme

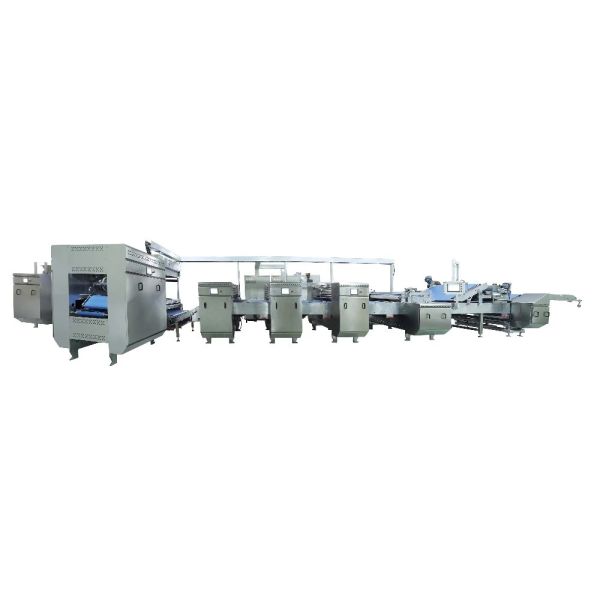

Biscuit production line processing

Biscuit production line processing from dough mixing, hard and soft biscuit forming, biscuit baking, biscuit cooling, biscuit packing. From mixing to biscuit packing, whole biscuit production line consist of units as above.

Detailed Images

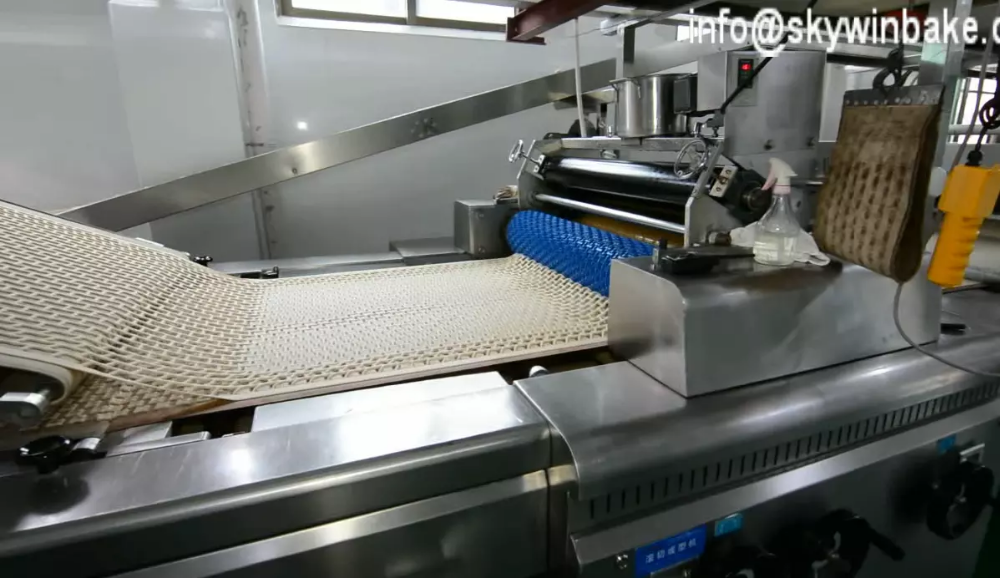

Hard biscuit forming line

Hard biscuit forming line have three-roll sheeter, laminator, B/C/D gauge roll combination, rotary cutter and separator. Dough sheeting thickness can be 1mm.

The forming mould can be change, Machine cover 304 Stainless steel, food grade PU conveyor belt with guides groove, SIEMENS transducer electric and PLC touch screen control.

100kg-1800kg/Hr Chocolate Filled Bear Biscuit Processing Line

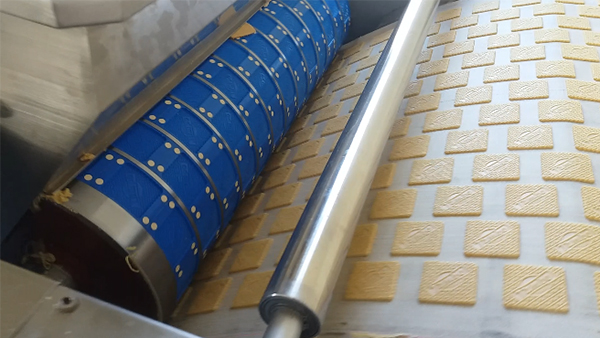

Soft biscuit making machine rotary moulder

This machine can make different shapes of soft biscuit ,just need to change the mould

Tunnel oven for baking biscuit

There are three types of tunnel oven electric, gas and diesel oil. It depends on the natural resources of different countries. Some contries is abundant in gas.

Full 304 Stainless steel cover, Siemens PLC touch screen control, insolate wood cotton, hot air circulation system, have automatic alarm device.

Pneumatic automatic tracking and adjust belt and tension.

The size of the oven determines the biscuit capacity.

Model	Length of oven	Output capacity
400mm working width	16-40m	50-300kg
600mm working width	50m	500-620kg
800mm working width	50-60m	750-1000kg
1000mm working width	50-60m	850-1200kg
1200mm working width	65m	1200-1500kg
